How F1 Circuits Are Designed: Balancing Speed, Safety, And Spectacle

Interesting and complicated is the interplay between engineering, creativity, and deep insight into racing dynamics in Formula 1 circuit design. Several factors come into consideration in an attempt to make the best F1 track in the world, from speed and safety considerations to spectator experience. This article investigates the detailed world of F1 circuit design, describing key elements that go to shape these iconic racing arenas.

The Art and Science of Circuit Layout

The basis of any great F1 circuit is a well-planned layout, challenging for the drivers and, at the same time, one that can permit exciting racing for the viewers. A circuit designer has to balance different elements delicately in order for the track to be thrilling but safe.

Streets and Corners

One of the basic things in circuit design is putting straights and corners together. Long straights are quintessential for expressing raw power and speed in F1 cars and usually become a site for perfect passing zones. Such high-speed sectors are commonly succeeded by heavy braking zones where daring overtakes and wheel-to-wheel racing become quite possible.

Nevertheless, corners are designed differently for drivers and car performances to be tested under variable circumstances:

Hairpins: Tight, slow corners that require precise braking and acceleration

Chicanes: A series of sharp direction changes that, in outbreak cases, tests a driver’s reflexes.

Sweeping curves: Fast, flowing corners that test a car’s aerodynamic grip

The combination and sequence of these corner types determine the character and excitement of a circuit.

Elevation Changes

Adding elevation changes opens a whole new dimension on circuit design: hills, dips, and undulations are not just aesthetically pleasing but bring their own challenges. Elevation shifts may change the braking point into corners, adjust the balance of the car during entry or mid corner, and further complicate the driving conditions through the inability to see either apex or corners of turns in order to create one very dynamic and interesting lap.

Mistake Generators

Theoretically, a fine circuit design does include what the designers term as “error-inducing areas,” or, alternatively, mistake generators of the track. These areas usually appear straightforward; however, this is not obvious to a less-than-experienced driver and usually has some small side effects on either traction, braking, or rotation. Spotted by a wise designer, placing these elements strategically presents chances for passing and makes a bit of uncertainty in racing outcomes.

Safety: The Paramount Concern

Although a fantastic layout remains one of the critical ingredients for success in any track, F1 circuits remain safety paramount as part of its design features. The safety consideration is one aspect all modern tracks are trying to satisfy as regards the protection of the driver, the team members, and the fans generally.

Runoff Areas

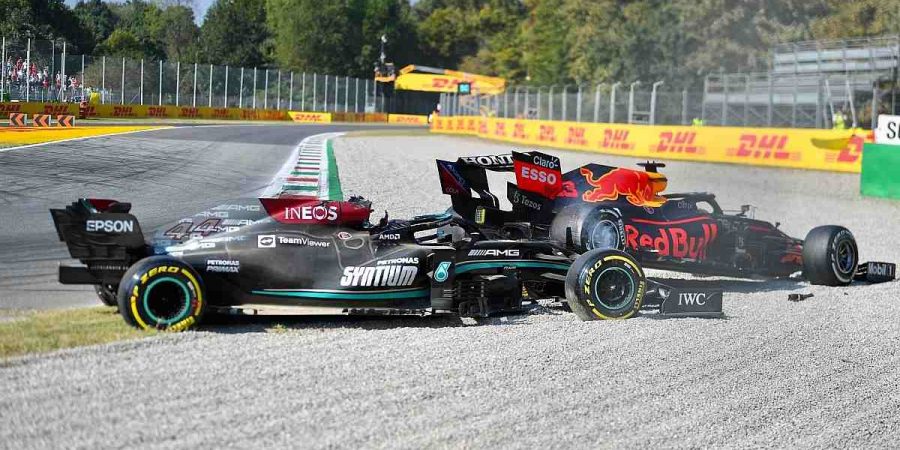

Run-off areas are a necessary feature that provides space for drivers to regain control in case of an incident. These are usually surfaced with gravel or asphalt, which provides substantial deceleration to cars that leave the track. The size and type of each corner’s run-off area are calculated using highly advanced simulation programs such as CSAS, or Circuit Safety Analysis System, which is capable of predicting the trajectory and impact a car would make under given conditions.

Barriers and Fencing

Impact-absorbing barriers are installed at strategic positions around the circuit to reduce the impact of crashes. These may include tire walls, Tecpro barriers, and other energy-absorbing systems designed to dissipate impact forces and minimize injury to drivers.

The high fencing around the perimeter of the circuit is designed to protect against debris in case of an accident, while the fences themselves are designed to contain the cars and debris on the track, thereby protecting both drivers and spectators alike.

Medical Facilities

Modern F1 circuits have advanced medical facilities and personnel, all poised to act on an instant’s notice. This means medical cars, helicopters, and fully equipped trackside medical centers to ensure quick response times in case of any incidents.

The Role of Technology in Circuit Design

The modern era has given a completely new look to the design and testing stages of F1 circuits. Advanced computer-based simulations and modeling can be used by designers to evaluate various aspects of the track before construction of the track begins.

Computer Simulations

Designers employ the use of sophisticated computer simulations. These models test corner radius, elevation changes, and track width, amongst many other factors. These simulations enable them to pick out problems and make subtle changes in both layout and nature of the track.

Surface Design

The track surface itself is an extremely important aspect of circuit design: designers will select various materials with inclusions that achieve a desired level of grip and, therefore, the desired tire wear, affecting not only performance but also very fundamental strategic decisions on pit stops and tire management.

Balancing Tradition and Innovation

Wherever it goes, and however much it evolves, the art of F1 circuit design will always need to walk that tightrope of respect for a rich history combined with the ability to innovate and improve. The way this so often works out is in redesigning classic circuits.

Classic Circuits

The most iconic tracks, which have remained part of the F1 calendar since the very first 1950 season, include Monaco, Monza, Silverstone, and Spa-Francorchamps. Over time, these circuits have undergone a great number of different safety updates while retaining most of their distinctive character and difficulties.

Modern Designs

In contrast, many of the new circuits have more expansive run-off areas, more even surfaces, and a much greater emphasis on safety. While such tracks are generally safer, they have at times been criticized for lacking the character and challenge of some of the older circuits.

Hermann Tilke’s Influence

No discussion of modern F1 circuit design would be complete without mentioning Hermann Tilke, the most prolific designer of contemporary F1 tracks. Tilke has designed or redesigned more than 25 different Formula One circuits and greatly changed the face of modern F1 racing.

Tilke’s designs often feature certain hallmarks:

Long straights into tight corners to facilitate passing

A mix of high-speed and technical sections

Smooth, wide tracks with extended run-off areas

While Tilke’s circuits may have frequently been criticized for being similar in character, or just a bit too similar, with so many of his designs across the world, a lot of them have also become favorites for the fans. For instance, the Sepang International Circuit in Malaysia was also widely acclaimed for its challenging layout and exciting racing action20.

Cost of Building an F1 Circuit

Amongst the very high-cost investments, a modern F1 circuit is being designed and constructed. The estimated development cost of a new F1 circuit is above $270 million, while its annual maintenance cost is approximately $18.5 million. These figures have shown the immense investment involved in making and maintaining a world-class racing facility.

The Future of F1 Circuit Design

As Formula 1 continues to develop and improve, so does the approach to circuit design. Several trends are taking hold in the future of F1 tracks:

Sustainability

Due to the increased push for F1 to become more ‘green,’ circuit design is increasingly looking at the environmental impact. This includes renewable energy sources, the use of sustainable construction materials, and minimizing the environmental impact of the events themselves. 5.

Improved Spectator Experience

The latest designs for circuits are increasingly geared towards fan experience improvement: better grandstands, more modern facilities, and the integration of technology to improve the fan experience.

Data-Driven Design

Formula 1 is increasingly using data analytics and artificial intelligence to inform circuit design decisions. Analyzing fan reactions, race data, and simulation results enables designers to create tracks that are more likely to produce exciting racing and memorable moments16.

Conclusion

It is an amazingly complicated process, designing an F1 circuit. There’s much sensitivity required for balance among three important considerations: speed, safety, and spectacle. Every feature on the track—from its very conceptual design right down to every last little brick of it—all must be diligently considered while composing the venue, which separates the greats from the good, simply a track capable of bringing beautiful racing action.

As technology advances and the sport continues to evolve, F1 circuit design will no doubt continue to face new challenges and opportunities. But at its core, it’s about creating tracks that push the limits of human skill and engineering prowess while keeping all participants safe.

The art and science of F1 circuit design will continue to play the crucial role that shapes the future ahead and creates stages upon which the unfolding drama of Formula 1 unfolds. Looking ahead, there is every hope that new, more innovative, and exciting circuit designs are going to thrill fans and challenge drivers for generations to come.
